Characterized control valves with actuators
Characterized control valves with actuators
Characterized ball valves have a v-notch in the ball or a v-notched disc which provides better flow control over a regular ball valve design. A characterized ball valve is used to control and modulate flow. It gives more stability compared with other kinds of valves. They can withstand higher pressure, are lighter and cheaper. We are offering different actuators for these valves. The valve with the actuator can function as an opening, closing and mixing valve for domestic hot water or heating and cooling the building. It can also be used as a room temperature controller. Water valves and actuators are used for automatic temperature maintenance and water flow regulation.

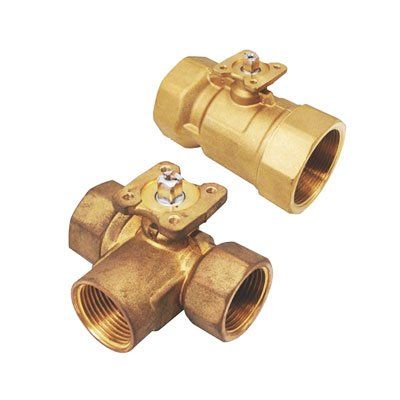

2 way and 3 way characterized ball valves
2-way and 3-way characterized disc ball valves NVCB are mainly used in the HVAC system to regulate the flow of water and steam in response to the demand of a controller. High close-off pressure actuator satisfies the demanding requirements of high-rise buildings and high-pressure pumping systems. These valves are recommended to control with Nenutec NABA or NABM actuators, or if you need an electronic spring return function with NEBA or NEBM actuators.
Features
- Complete range from DN 15 to DN 50
- 2-Way, 3-Way Mixing / Diverting
- Forged brass body
- Low leakage factor of up to 0.01% of KVs
- PN 20 or 290 PSI system operation pressure
- Equal percentage flow characteristic
| 2 way valve | 3 way valve | DN | KV |
|---|---|---|---|
| NVCB 72015BC | NVCB 73015BC | 15 | 1 |
| NVCB 72015BC1 | NVCB 73015BC1 | 15 | 1,6 |
| NVCB 72015BD | NVCB 73015BD | 15 | 2,5 |
| NVCB 72015BE | NVCB 73015BE | 15 | 4 |
| NVCB 72015BB | NVCB 73015BB | 15 | 6,3 |
| NVCB 72015BF | NVCB 73015BF | 15 | 10 |
| NVCB 72020BE | NVCB 73020BE | 20 | 6,3 |
| NVCB 72020BF | NVCB 73020BF | 20 | 10 |
| NVCB 72025BE | NVCB 73025BE | 25 | 10 |
| NVCB 72025BF | NVCB 73025BF | 25 | 16 |
| NVCB 72032BE | NVCB 73032BE | 32 | 16 |
| NVCB 72032BF | NVCB 73032BF | 32 | 25 |
| NVCB 72040BE | NVCB 73040BE | 40 | 25 |
| NVCB 72040BF | NVCB 73040BF | 40 | 40 |
| NVCB 72050BE | NVCB 73050BE | 50 | 40 |
| NVCB 72050BF | NVCB 73050BF | 50 | 63 |

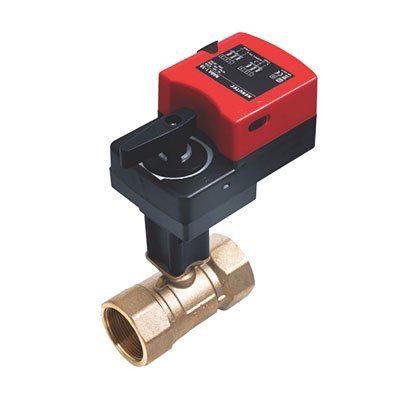

Standard characterized ball valve actuators
NABA and NABM series standard valve actuators are specially designed and produced for applications in HVAC systems. Our wide range of standard valve actuators has been developed to operate and position ball valves of different sizes.
Features
- Torque 2 – 10 Nm
- Power supply 230 VAC or 24 VAC / VDC
- Running time 60 – 120 sec
- Auxiliary switches optional, 1 x SPDT (adjustable)
| Product | 24 VAC / VDC | 230 VAC | 0(2) – 10 V / 0(4) – 20 mA | On –off / 3 – point | Auxiliary switch |
|---|---|---|---|---|---|
| 2 Nm for NVCB ball valve DN15 | |||||
| NABA 1-02 LN | ✓ | ✓ | |||
| NABA 1-02S1 LN | ✓ | ✓ | 1 switch | ||
| NABA 2-02 LN | ✓ | ✓ | |||
| NABA 2-02S1 LN | ✓ | ✓ | 1 switch | ||
| NABM 1.2-02 LN | ✓ | ✓ | |||
| 5 Nm for NVCB ball valve DN15 - DN25 | |||||
| NABA 1-05 LN | ✓ | ✓ | |||
| NABA 1-05S1 LN | ✓ | ✓ | 1 switch | ||
| NABA 2-05 LN | ✓ | ✓ | |||
| NABA 2-05S1 LN | ✓ | ✓ | 1 switch | ||
| NABM 1.2-05 LN | ✓ | ✓ | |||
| 10 Nm for NVCB ball valve DN25 – DN50 | |||||
| NABA 1-10 HN | ✓ | ✓ | |||
| NABA 1-10S1 HN | ✓ | ✓ | 1 switch | ||
| NABA 2-10 HN | ✓ | ✓ | |||
| NABA 2-10S1 HN | ✓ | ✓ | 1 switch | ||
| NABM 1.1-10 HN | ✓ | ✓ | |||
| NABM 1.1-10S1 HN | ✓ | ✓ | 1 switch |

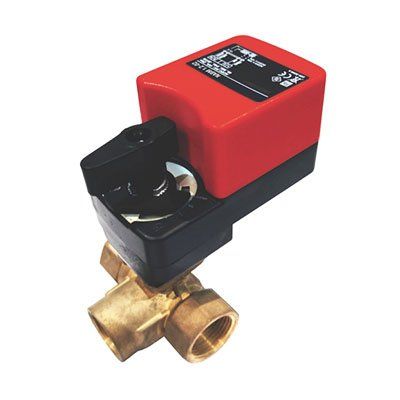

Ball valve spring return actuator
Ball valve spring return actuators NEBA and NEBM are specially designed and produced for general characterized ball valve control when a fail-safe function requires. During normal operation, the actuator motorizes the damper. When the power supply is off, the actuator springs back to its original position. Our wide range of spring return ball valve actuators has been developed to operate and position ball valves of different sizes.
Features
- Torque 5 – 10 Nm
- Power supply 230 VAC or 24 VAC / VDC
- Running time 50 – 70 sec
- Auxiliary switches optional, 1 x SPDT (adjustable)
| Product | 24 VAC / VDC | 230 VAC | 0(2) – 10 V / 0(4) – 20 mA | On –off / 3 – point | Auxiliary switch |
|---|---|---|---|---|---|
| 5 Nm for NVCB ball valve DN15 - DN25 | |||||
| NEBA 1-05 LN | ✓ | ✓ | |||
| NEBA 1-05S LN | ✓ | ✓ | 1 switch | ||
| NEBA 1-05 HN | ✓ | ✓ | |||
| NEBA 1-05S HN | ✓ | ✓ | 1 switch | ||
| NEBA 2-05 LN | ✓ | ✓ | |||
| NEBA 2-05S LN | ✓ | ✓ | 1 switch | ||
| NEBA 2-05 HN | ✓ | ✓ | |||
| NEBA 2-05S HN | ✓ | ✓ | 1 switch | ||
| NEBM 1.2-05 LN | ✓ | ✓ | |||
| NEBM 1.2-05 HN | ✓ | ✓ | |||
| 10 Nm for NVCB ball valve DN25 – DN50 | |||||
| NEBA 1-10 HN | ✓ | ✓ | |||
| NEBA 1-10S1 HN | ✓ | ✓ | 1 switch | ||
| NEBA 2-10 HN | ✓ | ✓ | |||
| NEBA 2-10S1 HN | ✓ | ✓ | 1 switch | ||
| NEBM 1.1-10 HN | ✓ | ✓ | |||
| NEBM 1.1-10S1 HN | ✓ | ✓ | 1 switch |
